EMH Manual Horizontal Test Bench

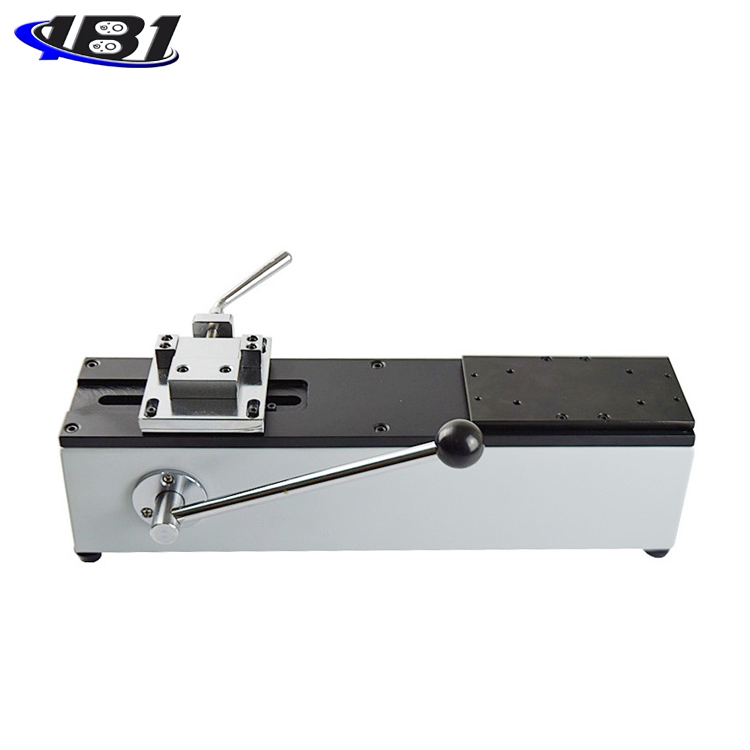

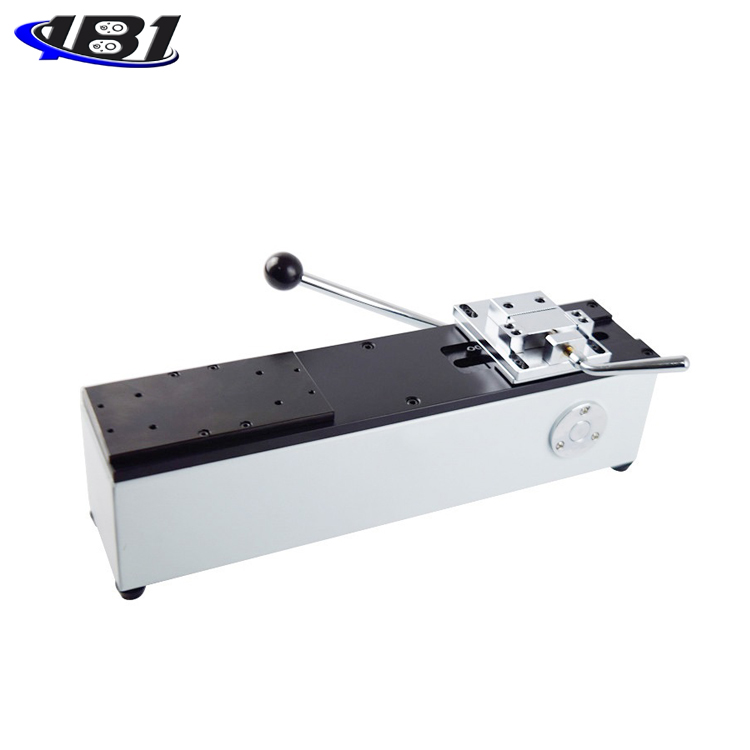

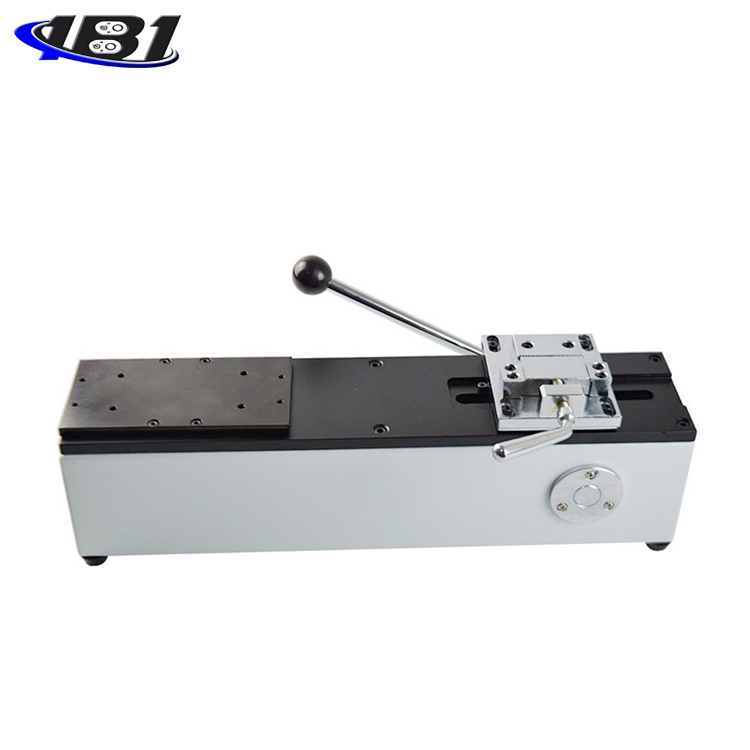

EMH Manual Horizontal Test Stand Instruction Manual

I. Functions:

EMH manual horizontal test stand is suitable for domestic and imported series of NK, NLB, ELB and other pointer push-pull gauges and HF series digital push-pull gauges for tensile and compression load, insertion and withdrawal force testing.

Features:

1. Horizontal installation;

2. Manual operation, simple and stable operation;

3. This rack can be installed on the table (desktop) to make it more stable.

Specifications:

Effective stroke: 50mm

· Maximum load: 500N

· L × W × H: 450 × 190 × 180 mm

· Net weight: 10.6kg

· Effective area of ​​test area: 105 × 100 mm, up to 105 × 152mm

Fourth, the structure diagram:

Five, dynamometer installation method:

1. Remove the mounting bar from the force measuring frame;

2. Connect the mounting bar to the 4-M3 dynamometer mounting hole firmly;

3. Install the mounting bar and dynamometer assembly on the dynamometer.
